Using the advanced filter

Opening the Advanced Filter Editor

To use the advanced filter:

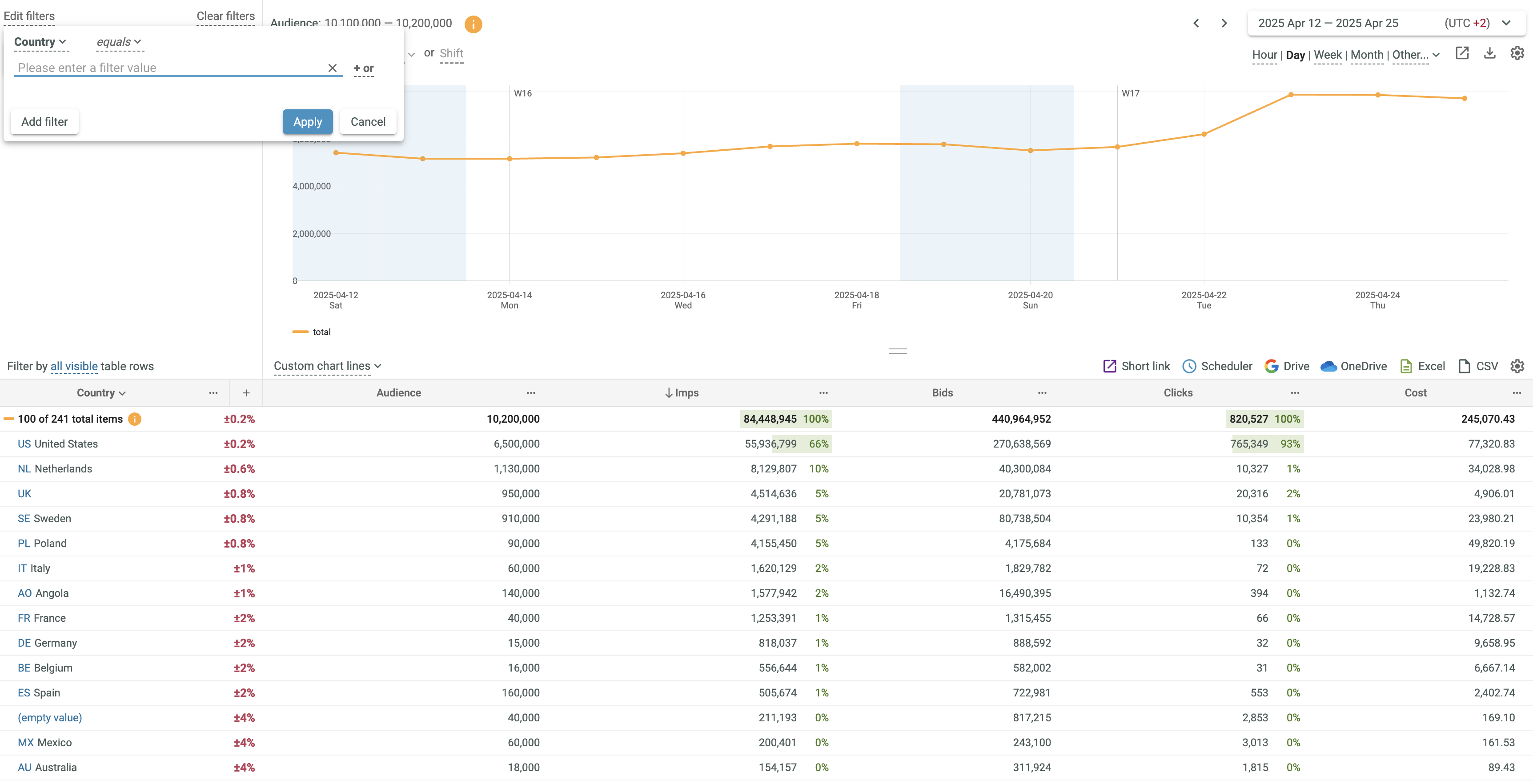

  • Click the Add filter button in the upper left corner. Advanced Filter Editor appears.

  • The default dimension in the first line always matches the last selected Category.
  • Select the first desired dimension from the appeared drop-down list, select the required match type ( equals and not equals for strict search or contains, not contains, begins with, ends with, not begins with and not ends with for fuzzy search) and enter the required dimension values. The default match type is equals.

All match types support several dimension values combined by the OR operator. To add a new dimension value, click the corresponding  button to the right of the previous value and enter the new value into the appeared box.

  • If the number of dimension values in the OR operator of the the advanced filter is greater than 100, then for any match type your search is performed by dimension values only.
  • If the number of dimension values in the OR operator of the the advanced filter is less than or equal to 100, then for any match type ( equals, not equals, contains, not contains, begins with and ends with, not begins with and not ends with) your search is performed by both dimension values and dimension mappings. Therefore, if a particular search string exists simultaneously in a value and in the mapping of a different value, both rows are returned.
  • If selected match type is contains, not contains, begins with, ends with, not begins with, not ends with and the number of rows to be returned is greater than 30,000, then the request is rejected, and the following error messages are displayed:
  • Error while getting charts data. Filter for field 'key_field' with value 'value' matches too many mappings. Please, use a longer sequence.
  • Error while getting table data: Filter for field 'key_field' with value 'value' matches too many mappings. Please, use a longer sequence
  • If necessary, click the button below the last selected dimension to add the next dimension.
  • Repeat steps 2 and 3 for all required dimensions.
  • The default dimension in the new line always matches the last selected dimension.
  • Each dimension may be selected any number of times.
  • Click the  button to apply the selected filter and close the Advanced Filter Editor,
  • If any matches are found, all data rows matching the specified search criteria are selected and displayed. The corresponding new links are added to the Split Chain in the upper left corner.

  • If no matches are found, no data is displayed and the following error message appears: There is no data available for selected parameters. Please readjust dates and/or split values. All new links are added to the Split Chain to allow the user to make the required corrections manually.
  • To remove a certain dimension value from a paticular link, put your mouse pointer over the desired link and click the corresponding appeared button.
  • To remove a particular link click the corresponding button.
  • To remove the whole Split Chain, click the Clear filters link.
  • To edit an existing Split Chain, click the corresponding button and make the required changes as described above.

Applying the Advanced Filter Directly to All Visible Dimension Values

You can apply the advanced filter directly to all visible dimension values.

  • Click the all visible link above the dimension column.

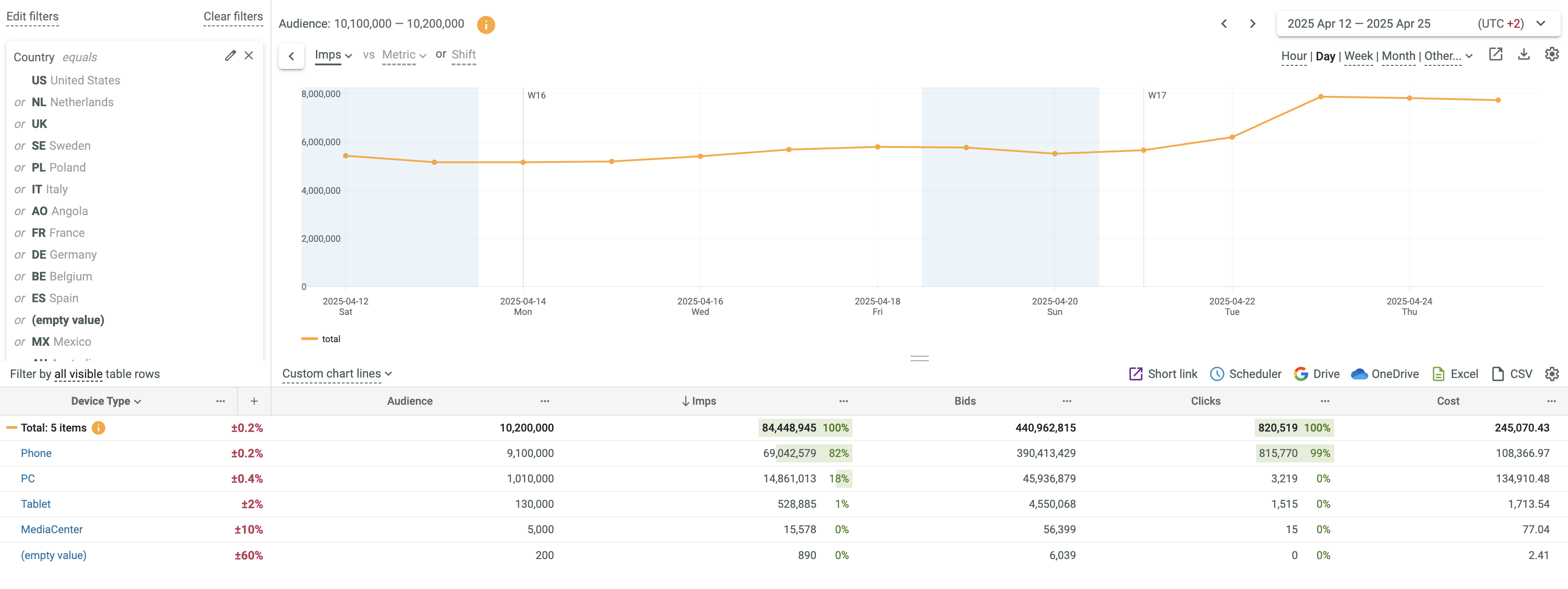

  • See that the advanced filter is applied to all visible countries.

Applying the Advanced Filter Directly to the Dimension Values Matching the Currently Selected Plots

You can apply the advanced filter directly to the dimension values matching the currently selected Plots (at least 2 Plots except Total should be selected).

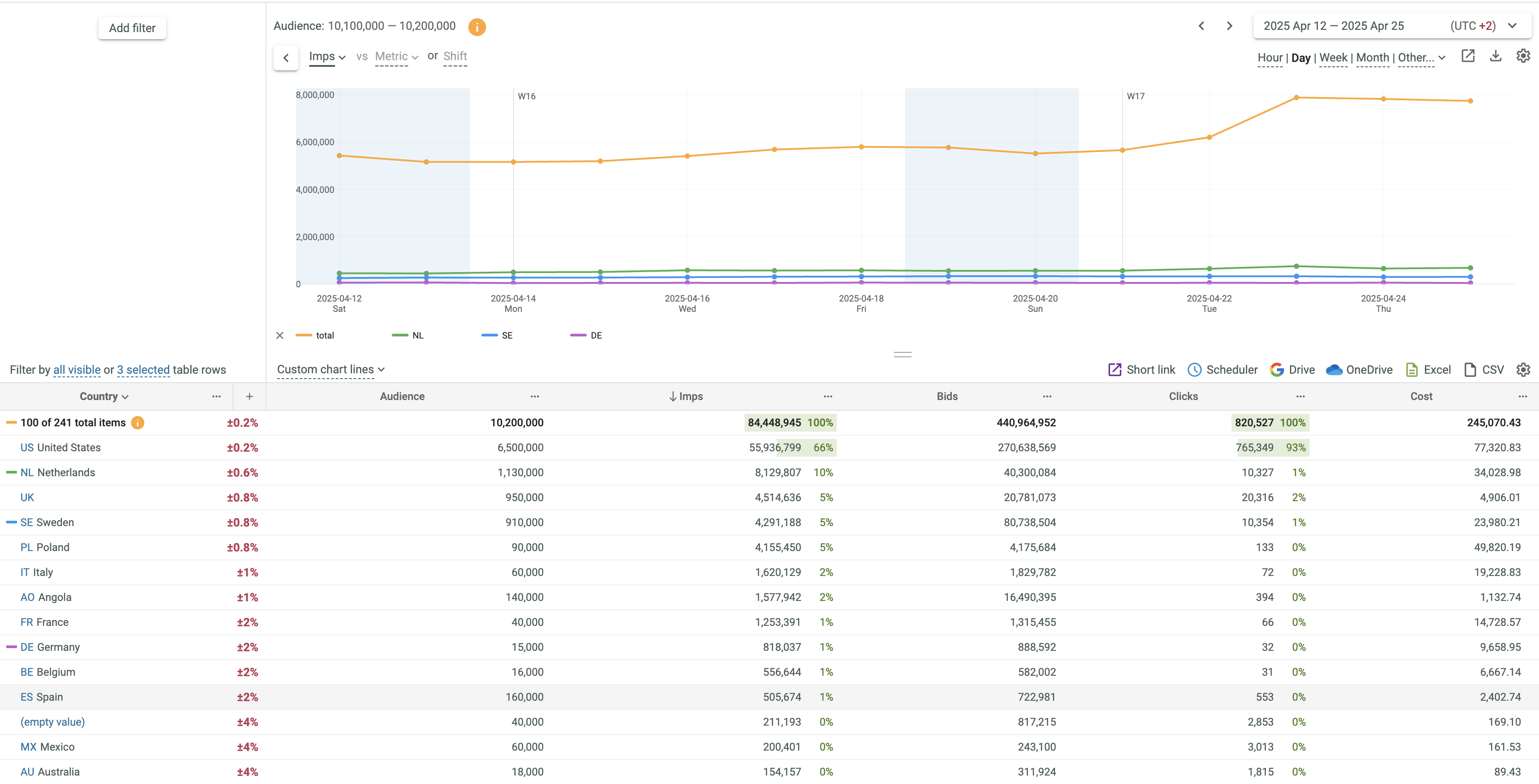

  • Select the desired Plots ( NL, DE and SE in this example).

  • Click the 3 selected link appeared above the dimension column.

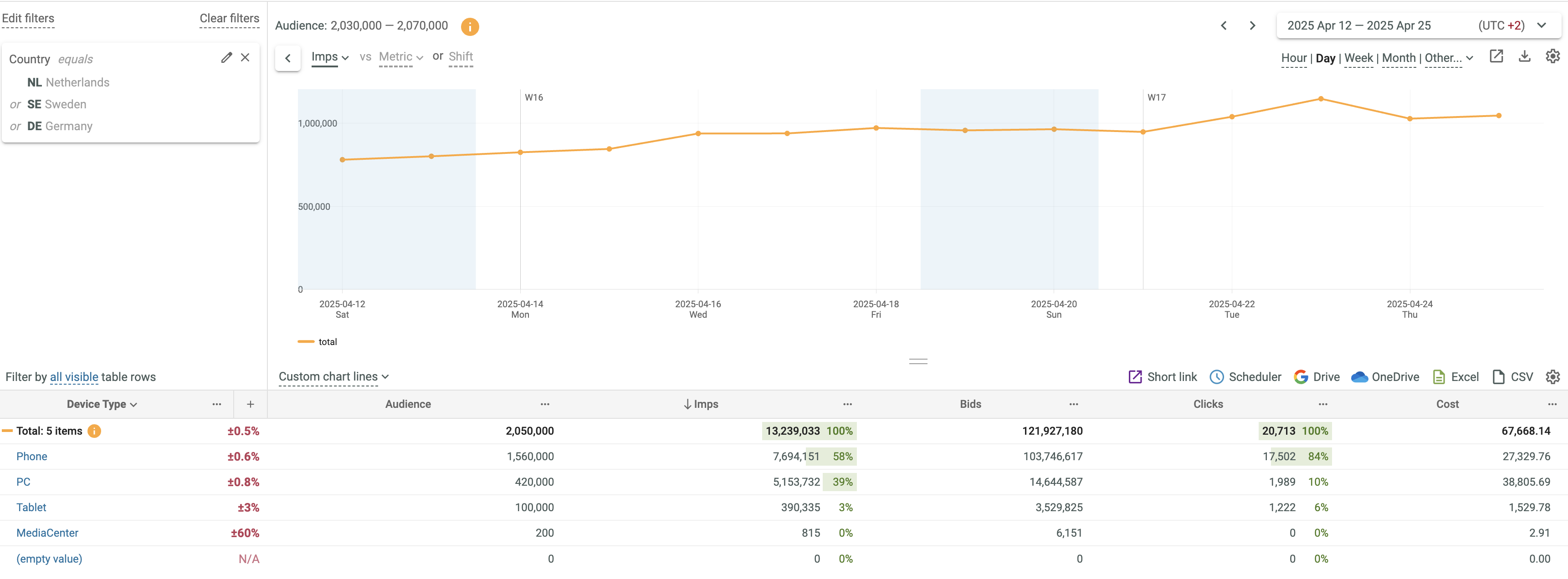

  • See that the advanced filter is applied to the NL, DE and SE dimension values.

Note 1: The following two special dimension values are used in the search operation:

  • "(empty string)" - means any number of spaces
  • "(empty value)" - means null or undefined value

Note 2: Fuzzy search by the "(empty string)" and "(empty value)" dimension values is supported only, if the whole value is specified. It is not possible to search by, for example, the "empty" value.

Note 3: Strict search by "(empty string)" is equivalent to strict search by 1 or more spaces.
