Using Custom Dimensions

u-Slicer allows you to add any number of Custom dimensions (based on existing dimensions) to your slicers directly from u-Slicer UI.

To add a Custom dimension:

• Click the username in the upper right corner.
• Select Settings option from the appeared pop-up menu.

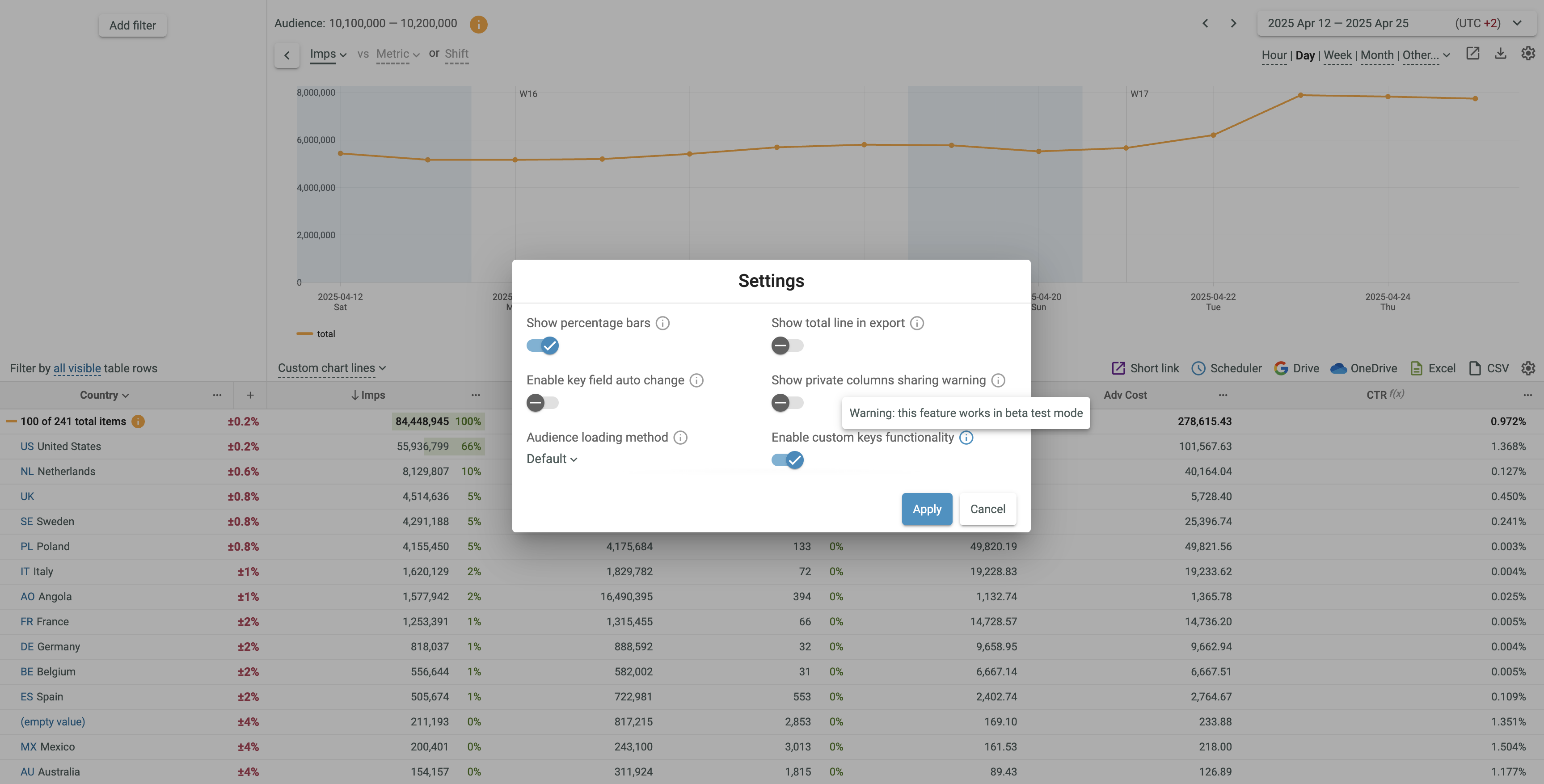

• Enable custom dimensions functionality.

• Click the Apply button.

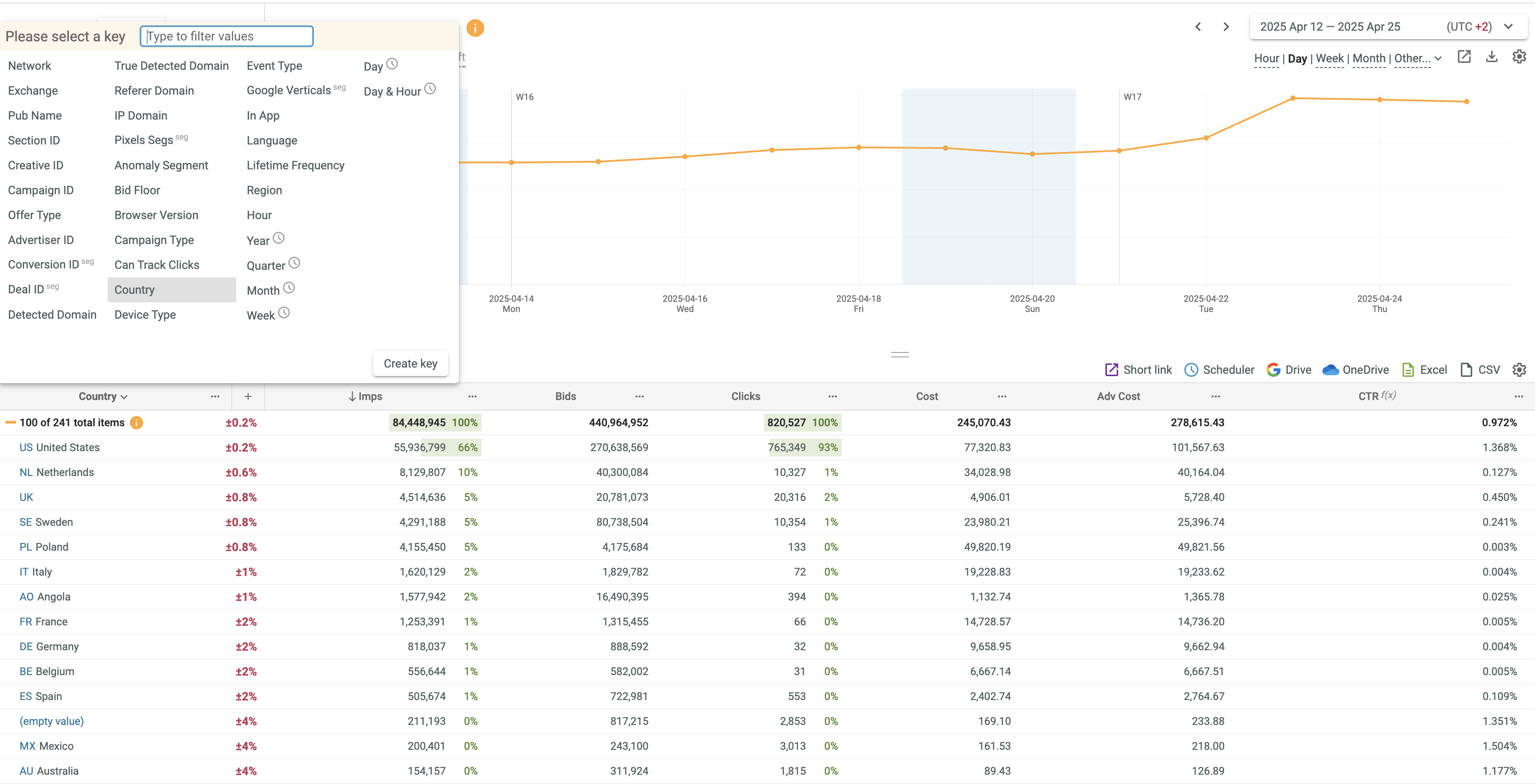

• Open the dimension selection dialog box.

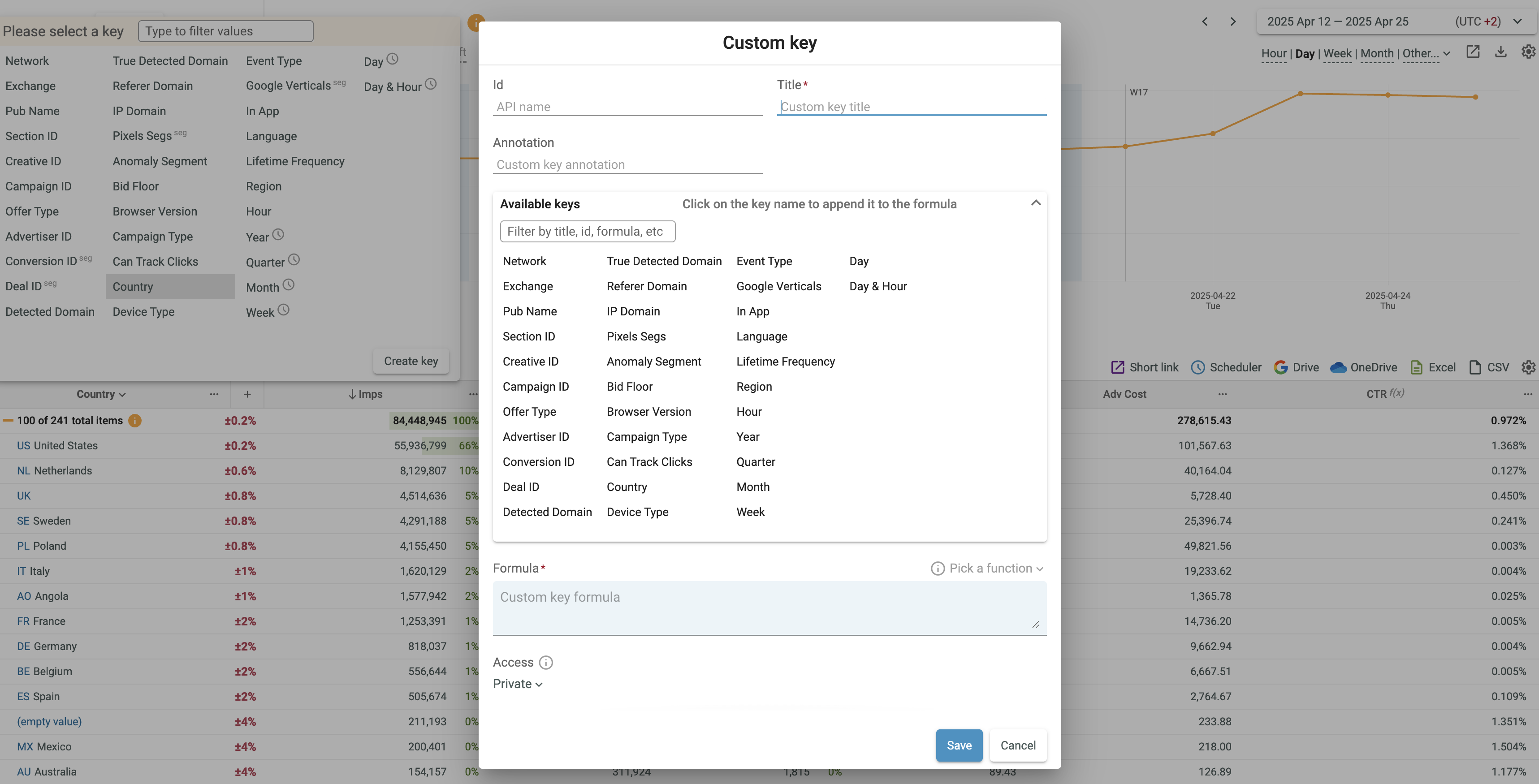

• Click the Create dimension button.

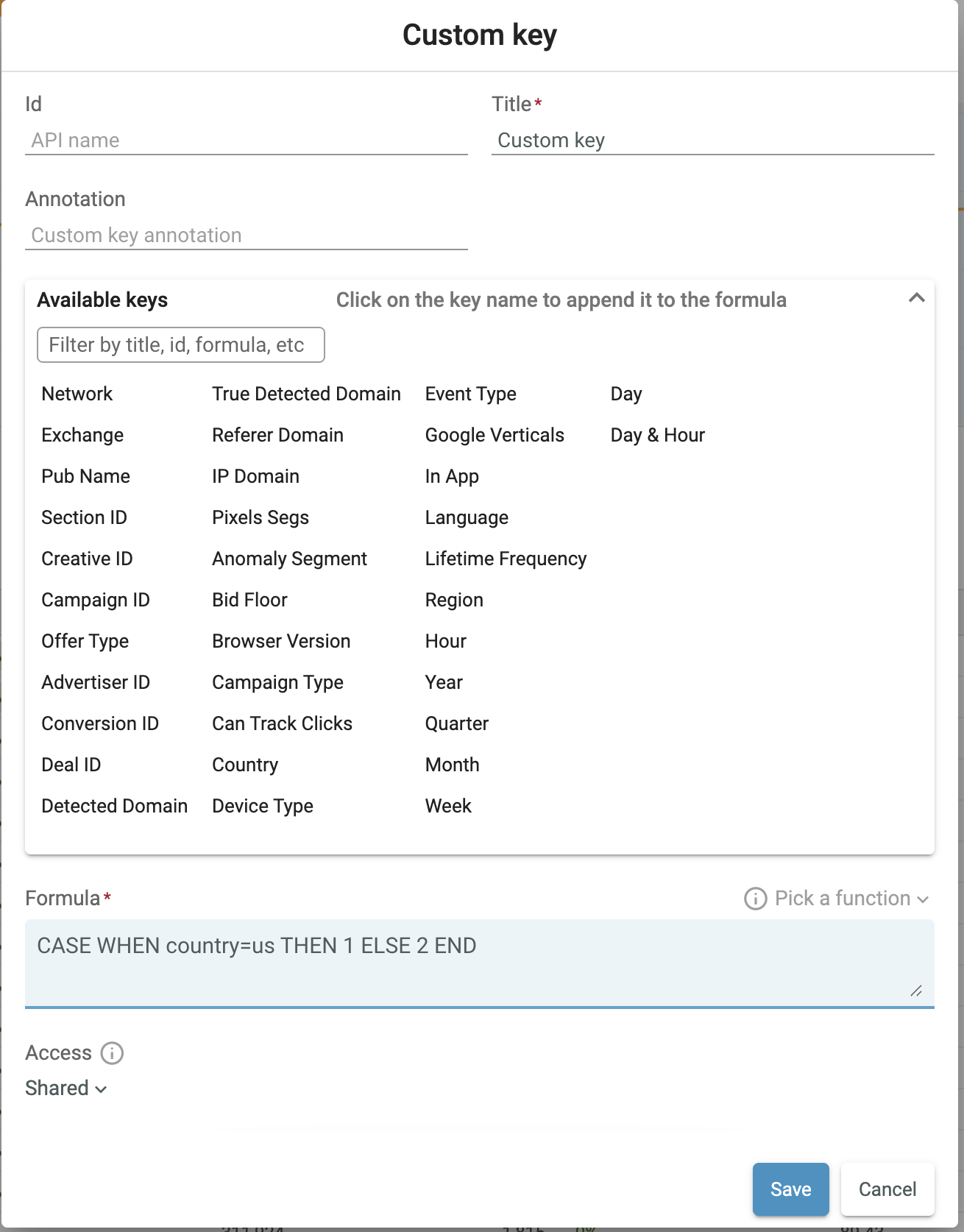

• Enter the desired Title.
• Enter the desired Annotation, if necessary.

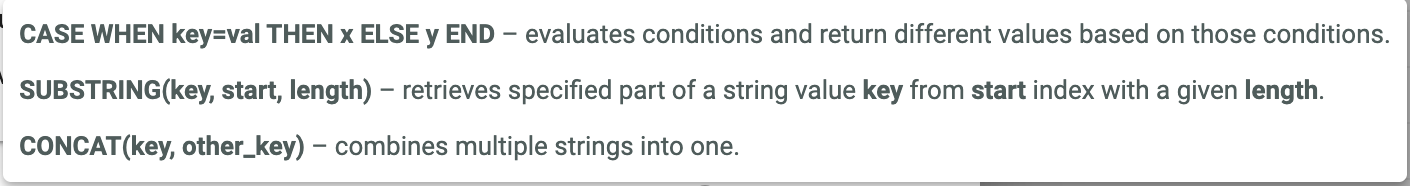

• Select the desised formula from the Pick a function drop-down list.

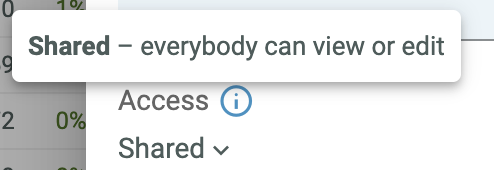

• Select the desired access type.

• Click the Save button.

• The created custom dimension is aded to the list of dimensions.
